At NAZARENO GLOBAL SOLUTIONS, we supply and distribute an extensive, premium range of high-performance **Hydraulic & Power Tools** engineered specifically for the extreme conditions of heavy engineering, subsea oilfield operations, construction, and marine logistics. Every tool in our portfolio is selected for its superior reliability, structural safety, and mechanical precision.
Backed by global manufacturing certifications (API-6A, ISO-9001), our hydraulic equipment division focuses on minimizing operational downtime and maximizing force efficiency. Whether you require precise bolting torque or heavy-tonnage structural lifting capacity, our engineers provide the custom support and technical recertification needed to keep your projects running safely.
Our Complete Hydraulic & Power Tools Range
Discover our field-proven tools engineered for high-pressure and critical industrial applications:

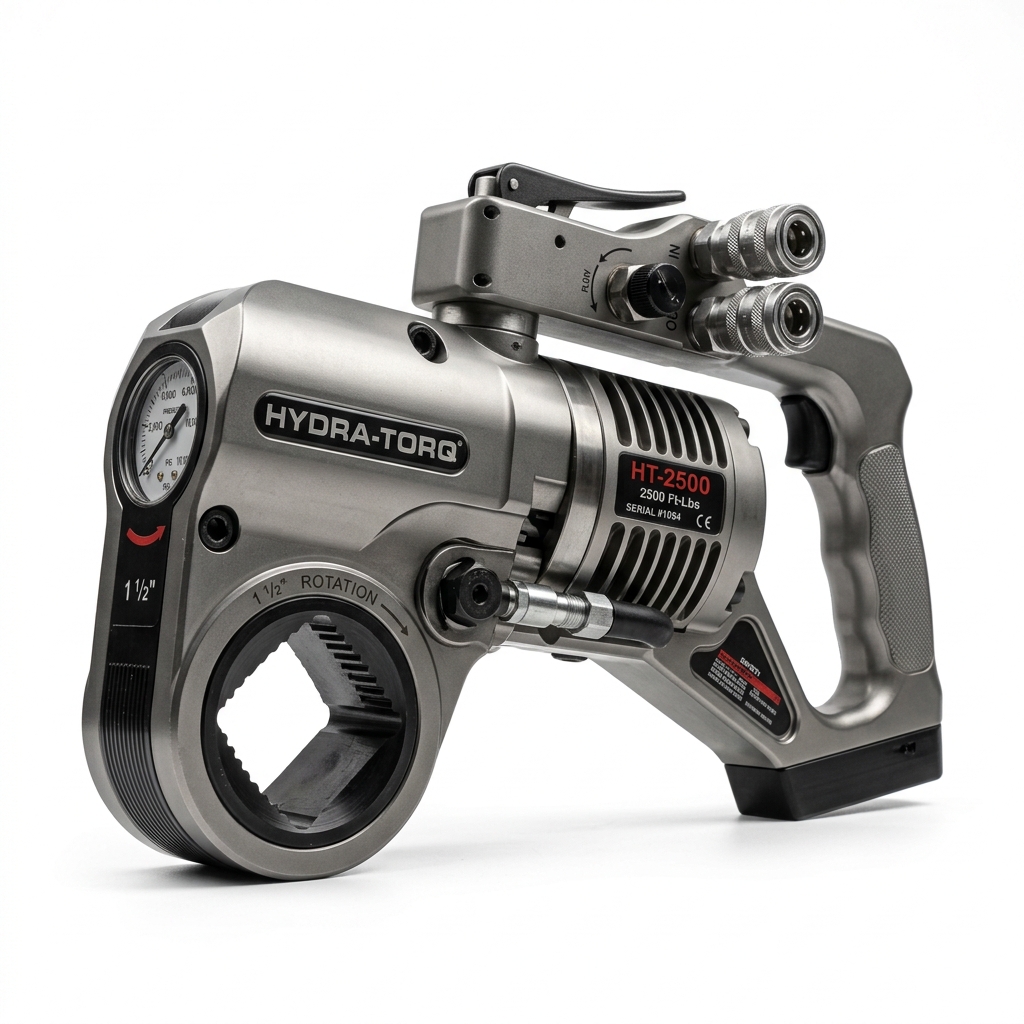

Hydraulic Torque Wrenches
Designed for fast and accurate bolting cycles. Available in low-profile hex and square drive styles to suit compact spaces.
- Max pressure: 10,000 PSI (700 Bar)
- Torque up to 35,000 Ft-lbs
- ±3% repeatability accuracy
- Aircraft-grade Al-Ti alloy body

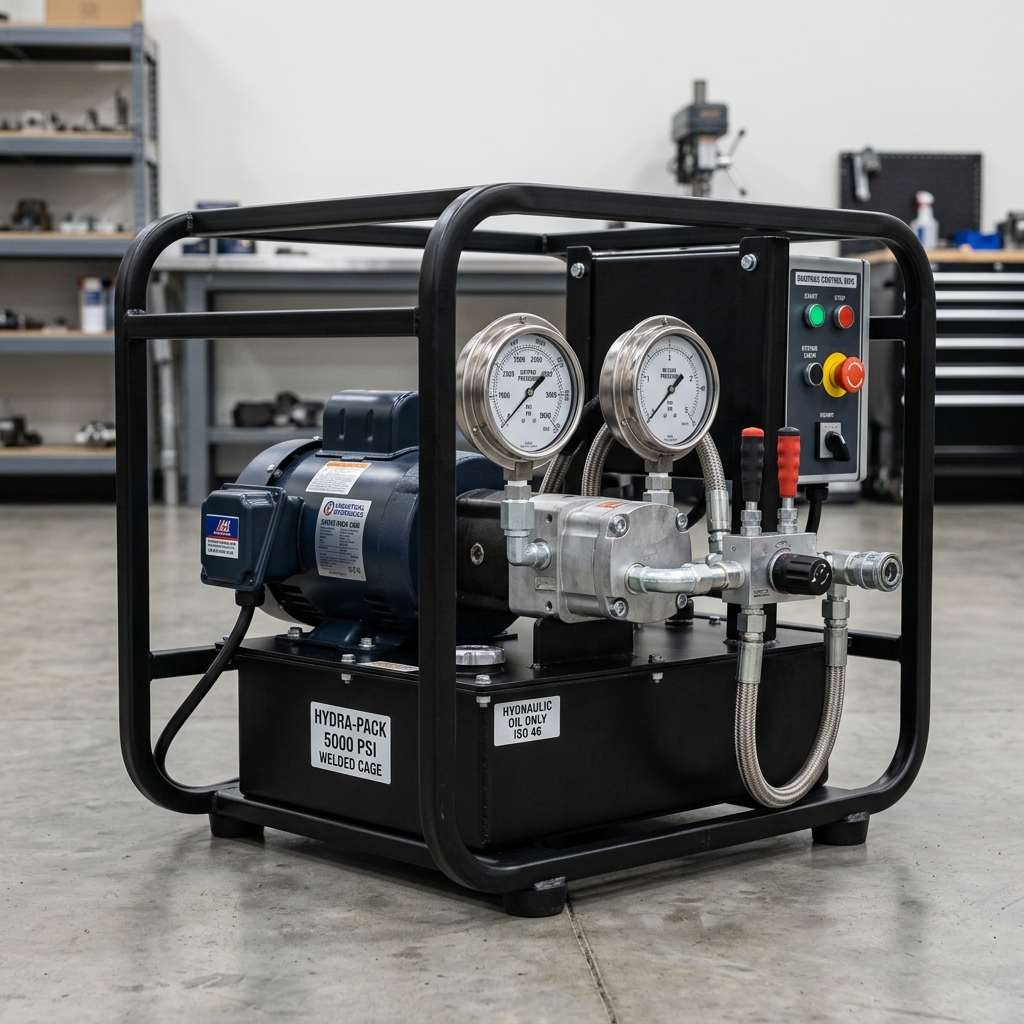

Hydraulic Power Pumps
High-efficiency electric, pneumatic, and manual power packs designed to deliver rapid, dual-stage flow to hydraulic cylinders and torque tools.
- 110V/220V Electric or Pneumatic
- Heavy-duty 4L to 20L reservoirs
- Dual-stage flow cycle valve
- Wired remote pendant control

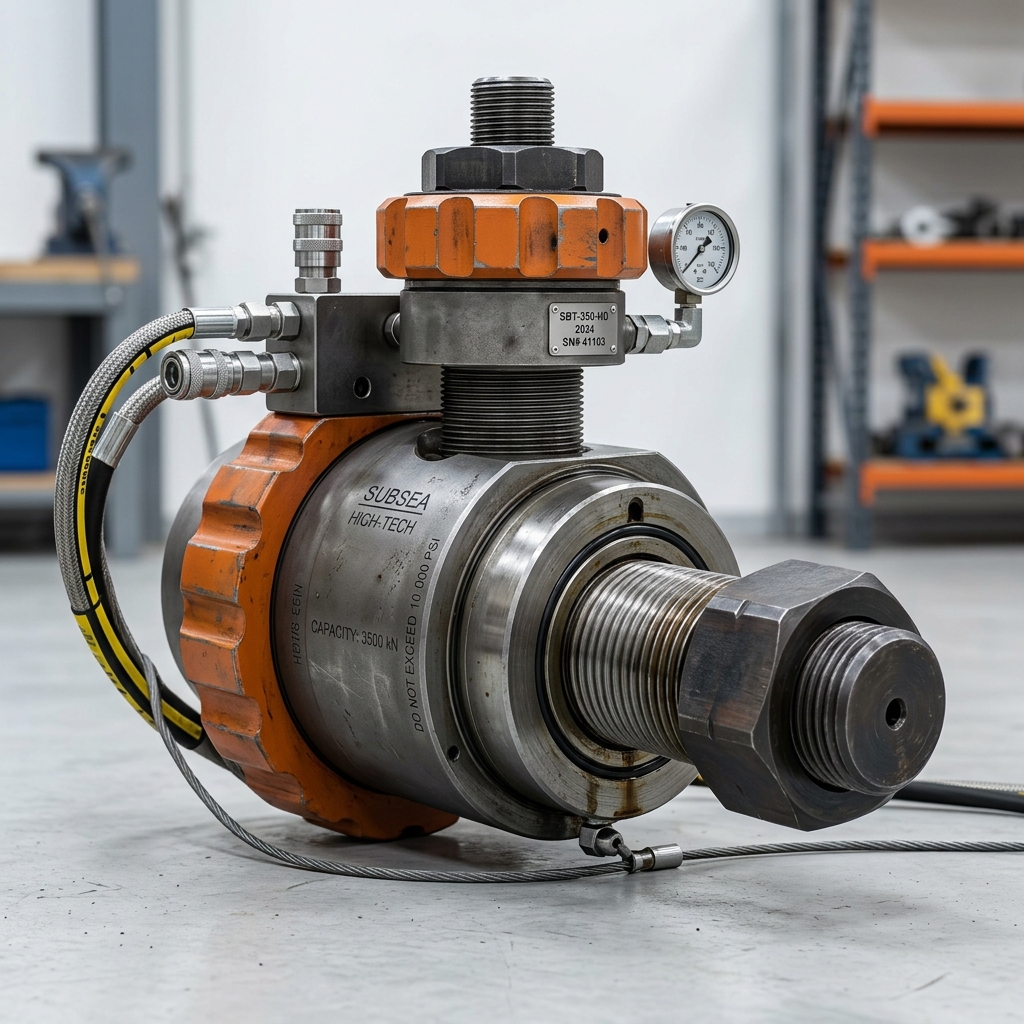

Hydraulic Bolt Tensioners
High-tensile topside and subsea tensioners ensuring uniform thread loading and tight joint integrity for flange connections.
- Max pressure: 21,750 PSI (1500 Bar)
- Thread sizes: M16 to M150 (5/8" to 6")
- Automatic piston retraction
- Corrosion-resistant coating

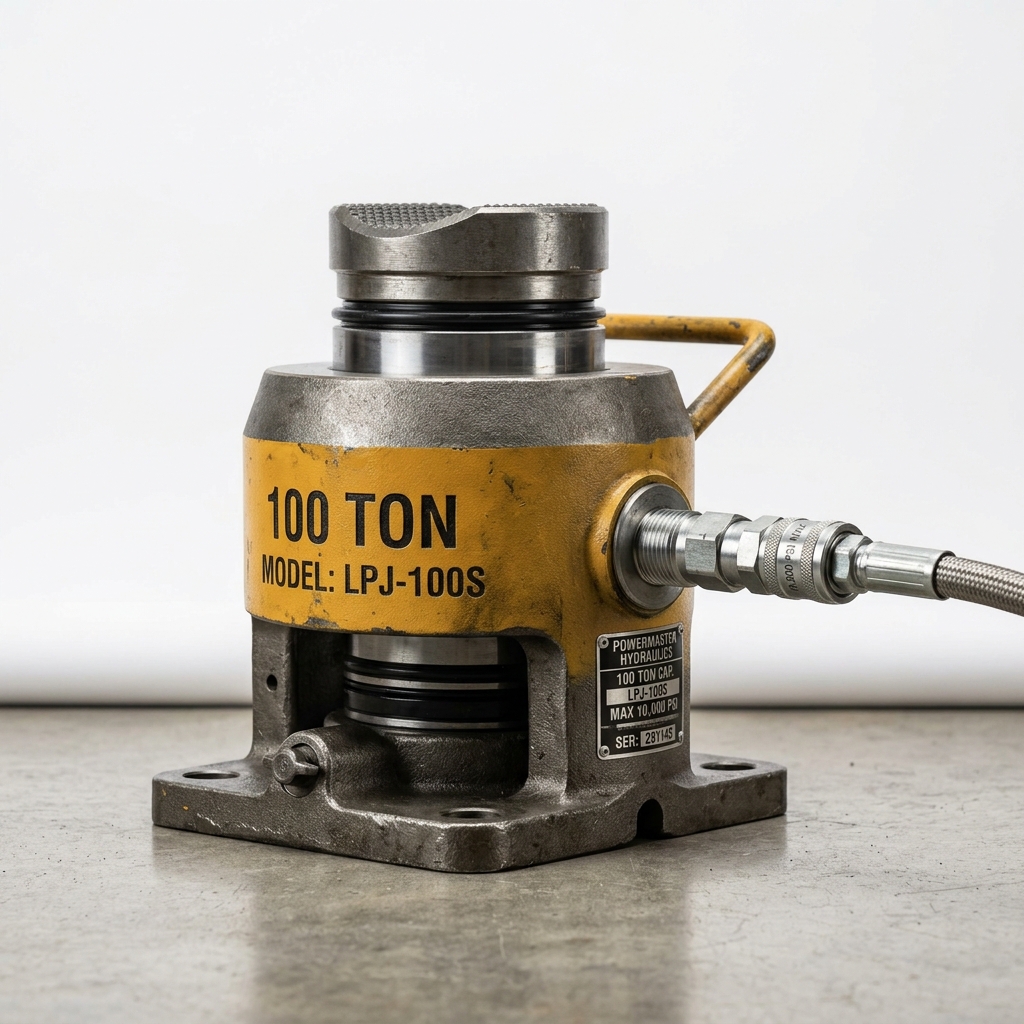

High-Tonnage Cylinders
Single and double-acting cylinders, hollow plungers, and lock-nut jacks for heavy industrial structural lifting and load positioning.
- Capacity: 10 to 1,000 Tons
- Stroke range: 15mm to 300mm
- Built-in safety relief valves
- Compliant with ASME B30.1 standard
See our tools in action
Experience the high-pressure performance and mechanical precision of NGS tools. Browse the interactive tabs below to see how our engineering team tests and runs our hydraulic systems.
Assemble and Hose Connection
Connect the twin-line safety hose between the low-profile drive and the pump. Ensure quick-connect couplings are fully engaged and locked.
Pressure Setting
Consult the torque chart to match target torque in Ft-lbs to pump pressure (PSI). Adjust the external relief valve on the pump to set limit.
Precision Tightening
Place the wrench on the nut. Advance the cylinder using the remote pendant control until the pump reaches preset pressure. Retract and repeat.
Positioning the Tensioner
Thread the puller sleeve onto the bolt stud extending above the flange nut, placing the hydraulic cell directly over it.
Hydraulic Pressure Application
Apply 21,750 PSI fluid pressure, stretching the bolt stud axially. The gap opens up between the flange and the nut.
Securing the Joint
Use a tommy-bar to hand-tighten the nut against the flange surface. Release pressure, allowing the bolt to shrink back and establish secure tension.
Traceable Transducer Verification
Tools are mounted in calibration jigs equipped with digital transducers traceable to international standard laboratories.
Cycle Pressure Verification
We perform 3 consecutive high-load cycles to ensure structural stability and zero oil leaks across fittings.
Calibration Certificate Issuance
Generate a detailed pressure-torque certificate documenting exact torque deviations and validity stamp.
Schedule a Live / Virtual Tool Demo
Interested in testing our tools? Fill out the form below to request a live demo by our engineering specialists at your work site, or schedule a high-definition virtual video walkthrough from our testing room.
